Abnormal Alert Overview

This manual provides clear explanations and standardized handling procedures (SOPs) for various abnormal alarm signals issued by the i4.0BS Intelligent module, helping operators quickly understand the alarm's meaning and take appropriate action. This systematic troubleshooting guide not only improves troubleshooting efficiency, but also helps reduce the risk of equipment downtime, further enhancing overall production efficiency.

Ballscrew

Lubrication Pressure Abnormal Alert

Vibration Abnormal Alert

Temperature Abnormal Alert

Life Prediction Abnormal Alert

Sensor Abnormal Alert

Troubleshooting of Temperature Abnormal Alert

The controller screen shows Abnormal temperature alert

As shown on the image, the controller interface displays the message “Temperature Abnormal Alert."
Please follow the steps to troubleshoot.
Note: A temperature abnormality exceeding 70°C does not necessarily indicate an immediate machine failure. First, check that the machine is operating normally. Pay close attention to subsequent processing. If persistent abnormalities occur, such as unusual noises, vibration marks, or persistently poor machining accuracy, contact the equipment manufacturer for repair.

Steps

Step 1 ：

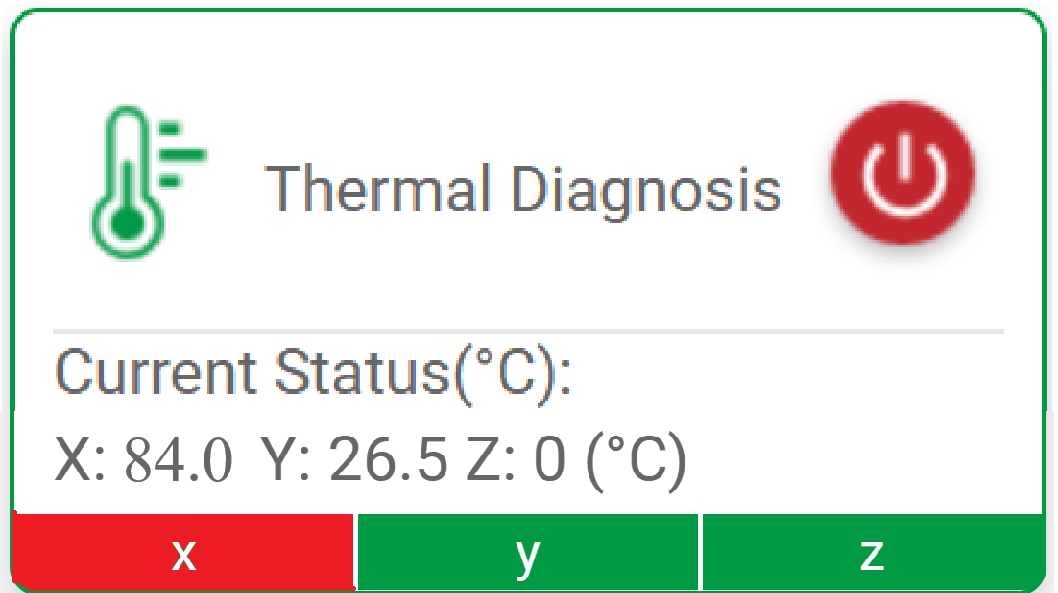

Check the GUI to see which axis has abnormal temperature and see if the temperature is greater than 70℃.

Steps

Step 2：

If the temperature is higher than 70℃, please stop the machine for a few minutes and then restart the machine. If the temperature continues to be higher than 70℃, please contact the equipment supplier for inspection.

Steps

Step 3：

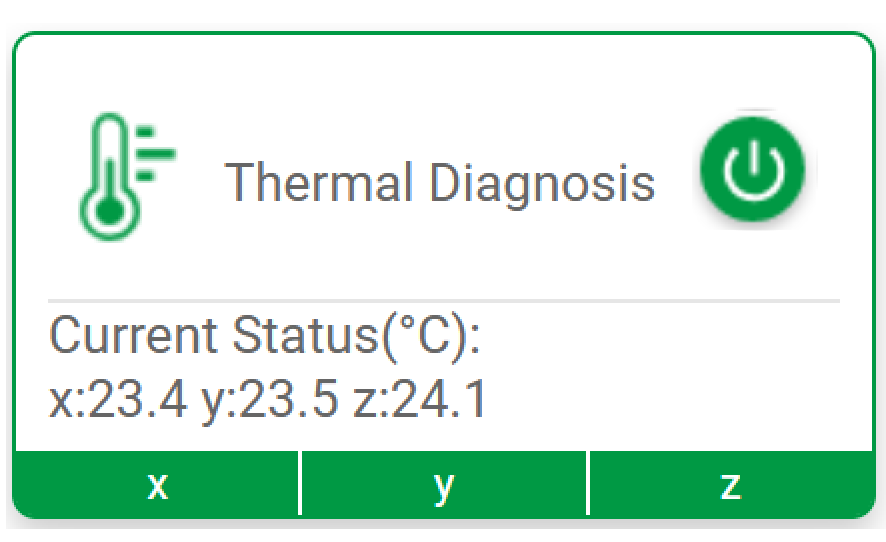

The alarm can be cleared by re-enabling the temperature reminder function through the GUI. (However, if it is not handled for more than 10 minutes, the alarm will be reactivated if the temperature remains high.)

Steps

Step 4：

Further confirm whether the temperature is greater than the upper temperature threshold.

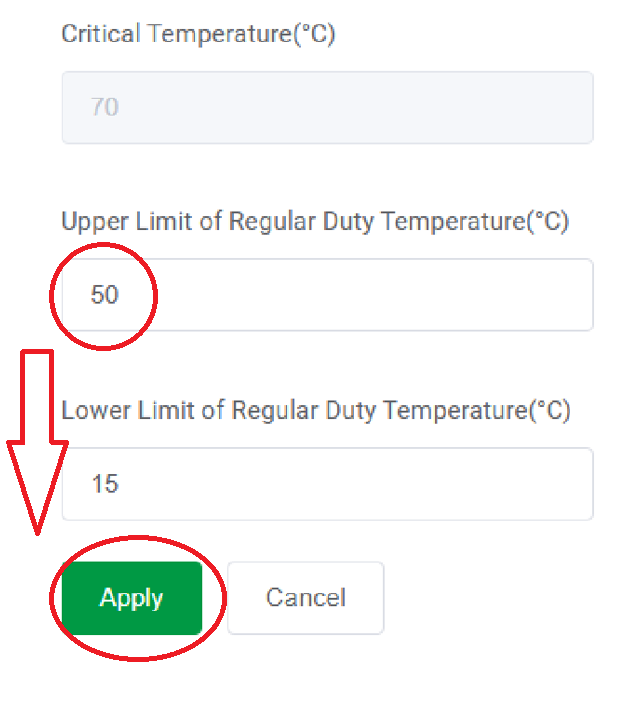

①Please confirm whether you want to modify the upper temperature threshold.

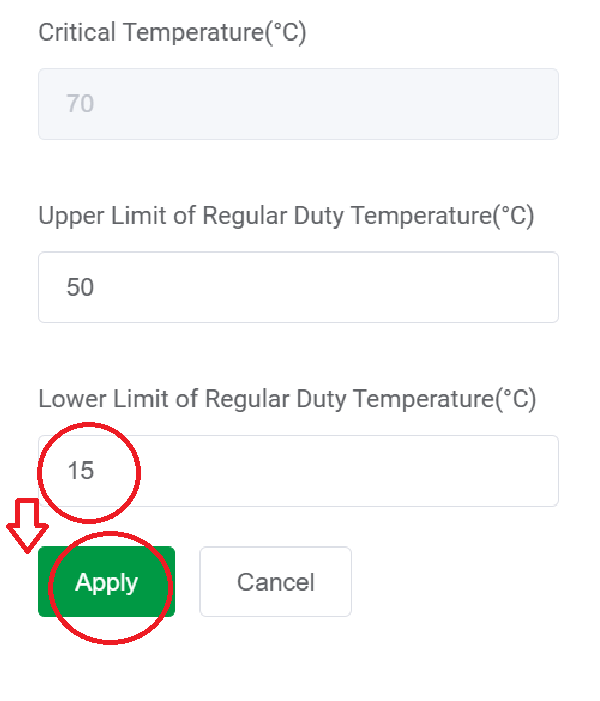

②Please confirm whether you want to modify the lower temperature threshold.
