Machine Tool

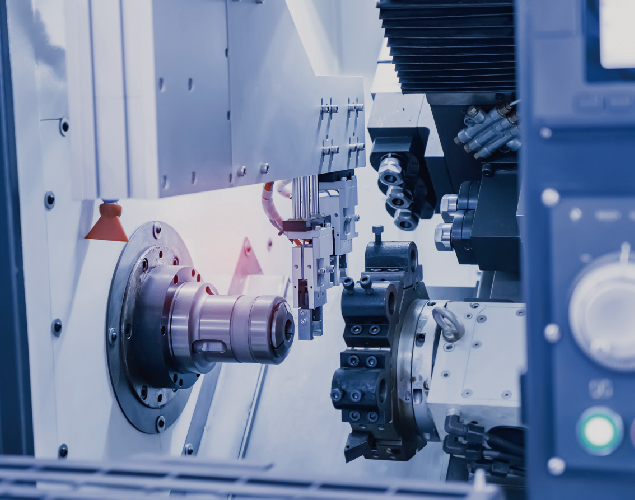

Precision CNC Lathes -Automated Material Feeding and Tool Changing

For precision machining of small components like watch parts, hard disk drive components, digital camera parts, mobile phone parts, electronic connectors and pins, door lock pins, and drive shafts, etc. The equipment configuration for such precision micro-machining lathes typically requires high accuracy, sophisticated design, and reduced size.

Demand for high-precision and high-performance critical components

Strain wave gear reducers, linear guides, and ball screws applications in precision micro-machining automatic lathes effectively enhances the machining accuracy, speed, and efficiency of the machine tool, while ensuring stability and reliability during the machining process, aligning with the modern tool industry’s requirements for high precision and performance.

precision_cnc_lathes

* Click the product in the image to view detailed features.

mt04_001s
dsc-po_b

Standard Series DATORKER® Strain Wave Gear
Features
  • Compact and Lightweight：Composed of flex spline, circular spline, and a wave generator, with a simple structure and easy installation.
  • High Precision：Utilizes metal elastic deformation transmission to achieve extremely high positioning accuracy.
  • Wide reduction ratio：Achieves speed reduction ratios of up to 1/50 to 1/120 with a single stage reduction, while maintaining the same external dimensions.
  • Low Backlash：Employs elastic deformation to achieve a high meshing rate, effectively eliminating backlash.
Advantages
  • Design：Features a hollow design with a wiring space and crossed roller bearings, capable of handling both axial and radial loads, and a large-diameter hollow shaft that saves structural space.
  • High Precision and Rigidity：Provides smooth motion and low rebound rates, contributing to precise workpiece machining and high surface quality.
  • Low Starting Torque：Requires less torque to start, saving energy and extending the product’s lifespan.

mg_b

MG Series Miniature Linear Guideway
Features
  • Wide Rail Design：Enlarged width rail design increases the capacity of moment loading suitable for high load applications.
  • Gothic Arch Four-Point Contact Design：Has high rigidity characteristics in all directions, ensuring system stability and working precision.
  • Safe and Reliable：Equipped with micro-sized retaining steel wires in the block design to ensure the stability and safety of the balls during operation.
Advantages
  • Low Assembly Profile Advantages：Provides flexibility under space constraints, adapting to various working environments.
  • High Rigidity and Precision：Supports and guides the moving parts of machine tools, enabling smooth linear motion and improving machining accuracy and efficiency.

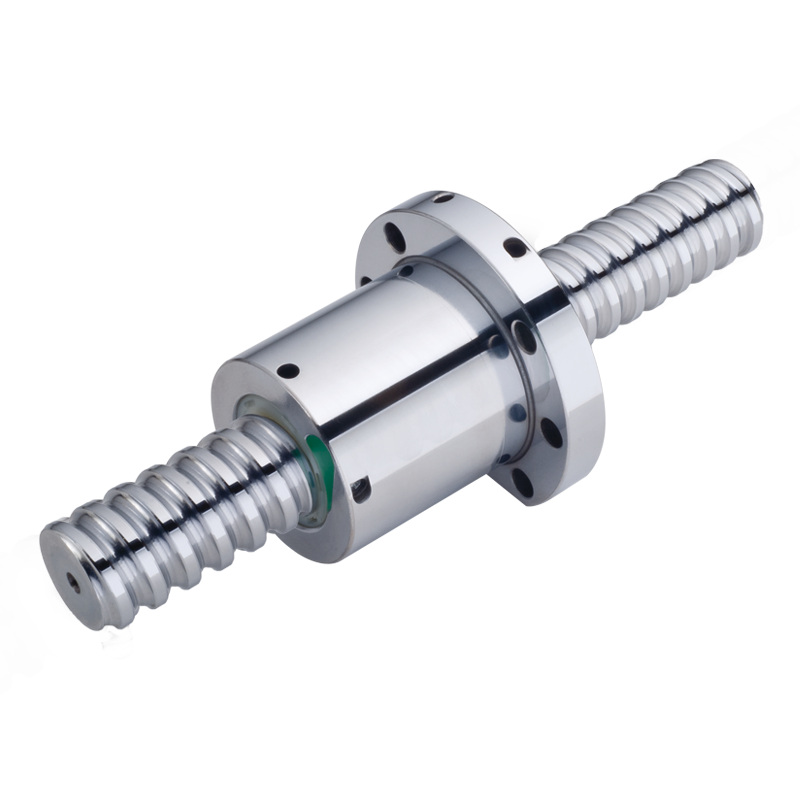

Super-S

Miniature Ground Ballscrew
Features
  • High Smoothness：The ballscrew utilizes rolling motion of steel balls, effectively reducing friction and providing high smoothness.
  • High Precision：Features high lead accuracy, making it suitable for applications requiring precise control in the precision machining industry.
  • Compact Size：Compared to other drive mechanisms, ball screws have a smaller size, making them suitable for installation in limited spaces.
Advantages
  • High Efficiency：The rolling motion of steel balls allows ball screws to maintain high efficiency and reduce energy loss.
  • Wear Resistance：Heat treatment processes ensure the hardness and wear resistance of ball screws, meeting the requirements for high load capacity and long service life.
