Machine Tool

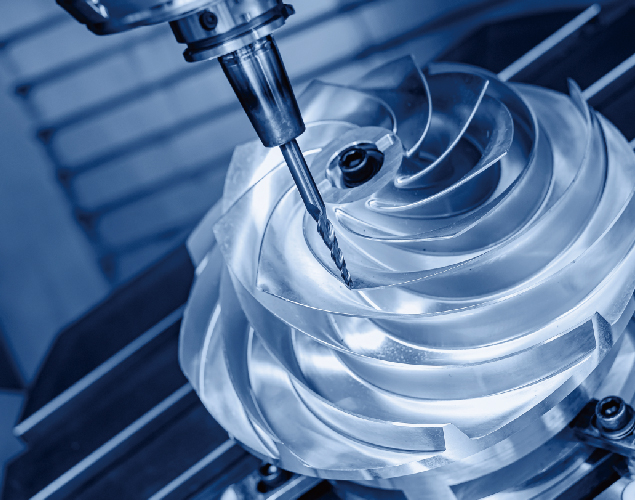

Five-Axis Vertical Machining Center-New Energy Vehicle Turbine Blades Processing

In the machine tool industry, five-axis vertical machining centers play a crucial role in applications requiring high precision, complex curved surfaces, single clamping, and excellent surface finish. These machines not only ensure the accuracy of components dimensions and shapes during the machining process but also possess high precision and multi-axis linkage capabilities. This allows for multi-surface machining in a single clamping, while precisely controlling surface finish, significantly improving production efficiency and machining quality.

Machining Precision and Surface Finish

Requirements Vertical five-axis machining centers can accurately machine complex shapes, ensuring precision of component dimensions and shapes. By precisely controlling cutting parameters and tool movement paths, they achieve the required excellent surface finish. These capabilities allow turbine blades to operate effectively at high speeds.

new_energy_vehicle_components

* Click the product in the image to view detailed features.

mt02_001s
RAS

RAS Series Torque Motor Rotary Table
Features
  • Versatile Applications：Suitable for 3+2 axis, 4+1 axis positioning, or full 5-axis simultaneous machining.
  • Direct Drive Motor Technology：Utilizes high-acceleration, high-torque, high-precision, zero-backlash direct drive motors.
  • Single-Arm Dual-Axis Rotary Table：Compact structure, ideal for space-constrained five-axis machine designs.
  • High-Response Synchronous Machining Performance：Ensures high responsiveness in synchronized machining operations.
Advantages
  • Stable Machining Quality：Ensures highly stable machining quality.
  • Improved Machining Precision and Efficiency：Enhances overall machining precision and efficiency through direct drive motors and high-rigidity bearings.
  • Space and Labor Savings：Reduces the need for additional equipment and manpower, optimizing workspace and costs
